Bringing professional quality control to your studio

If two or more ProDeck devices are connected via Ethernet (RJ45), they can indeed interface with each other. This connectivity extends to other devices within the same system, provided they communicate using specific protocols known as APIs or drivers.

Yes, Companion is compatible with ProDeck.

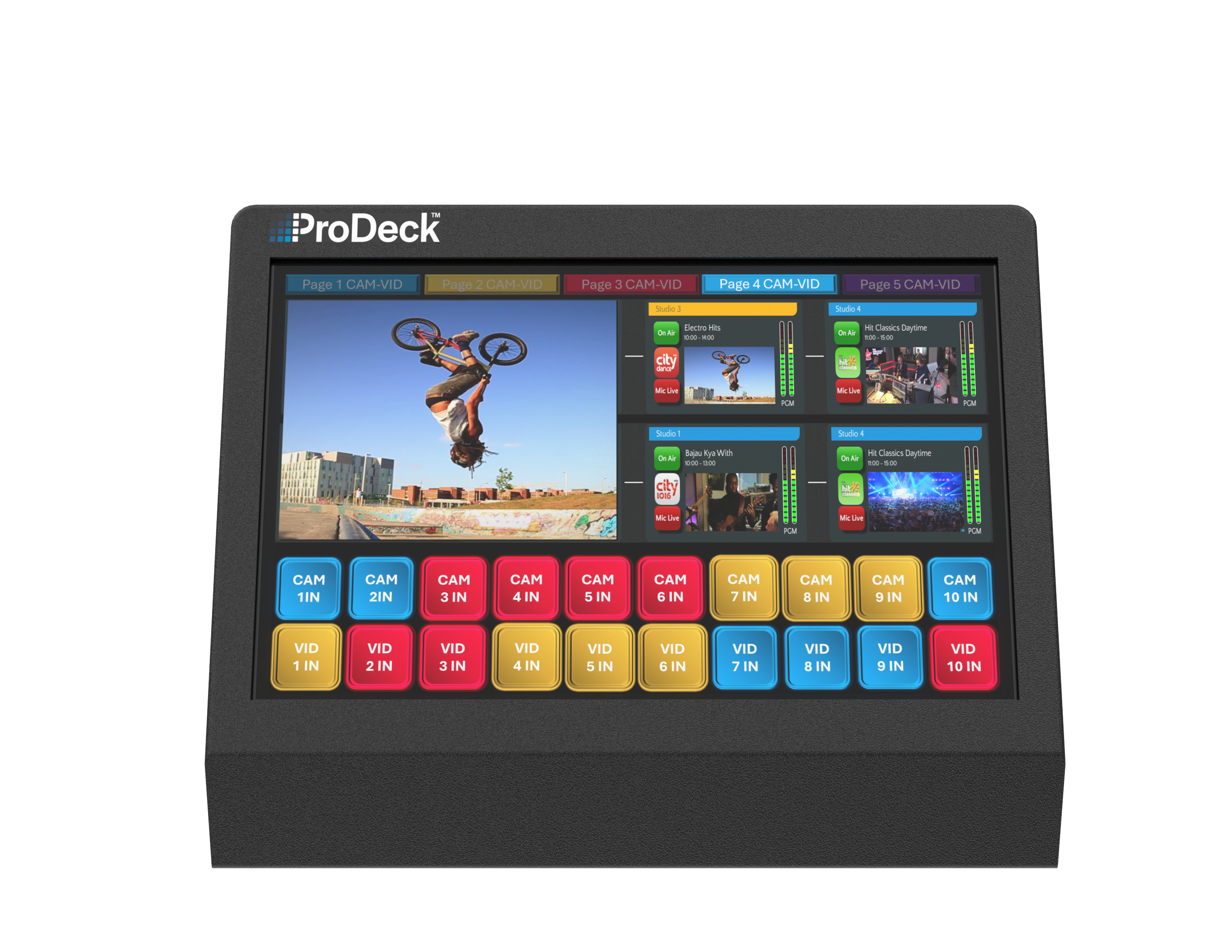

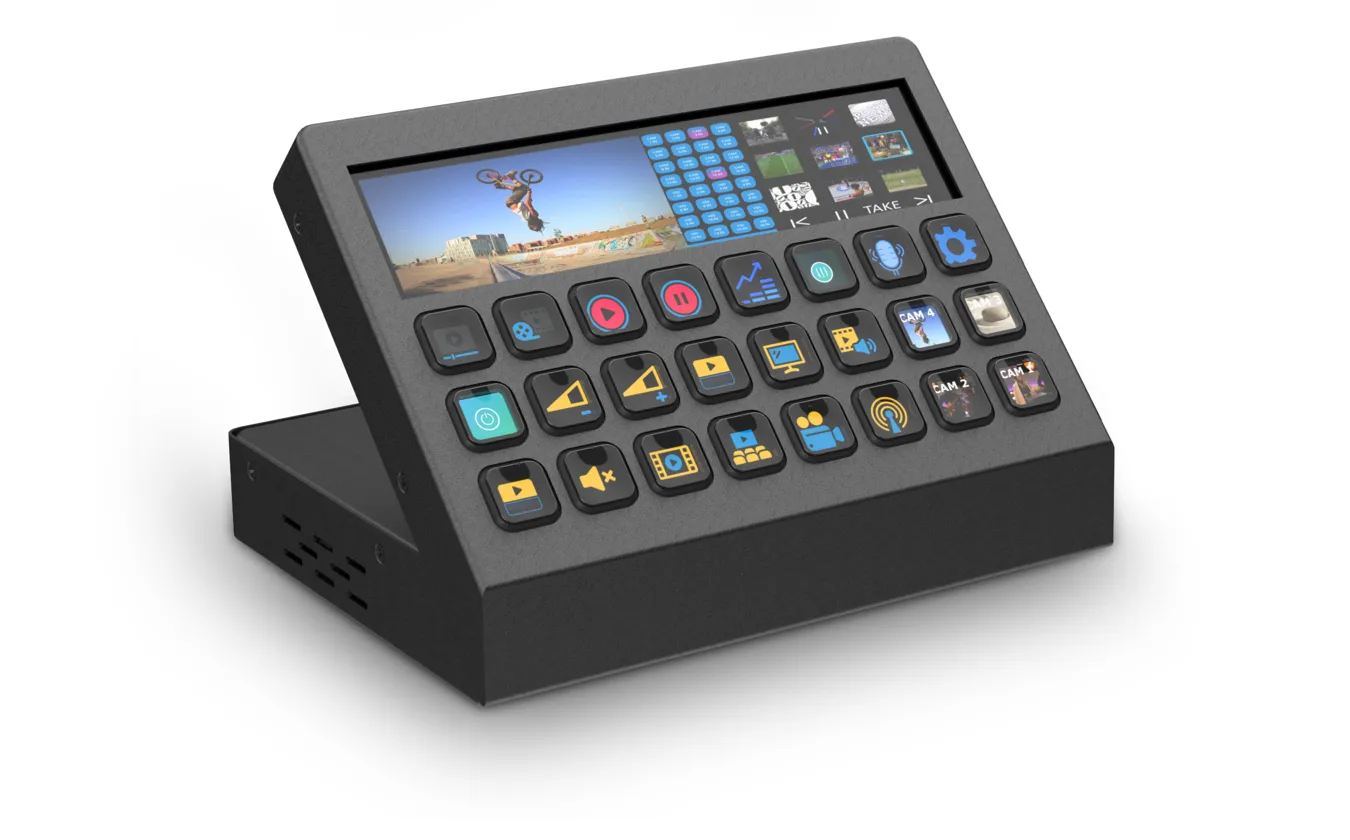

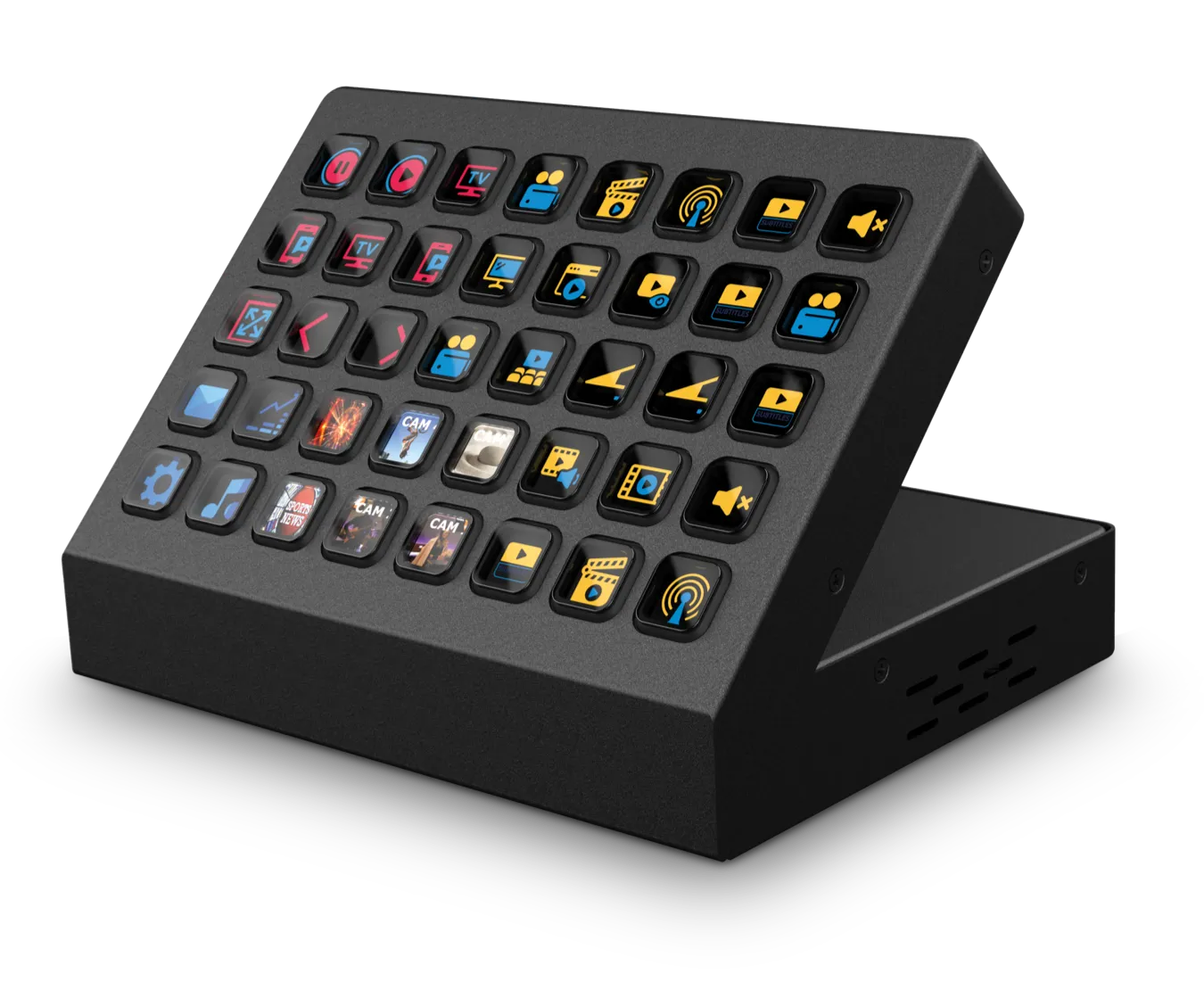

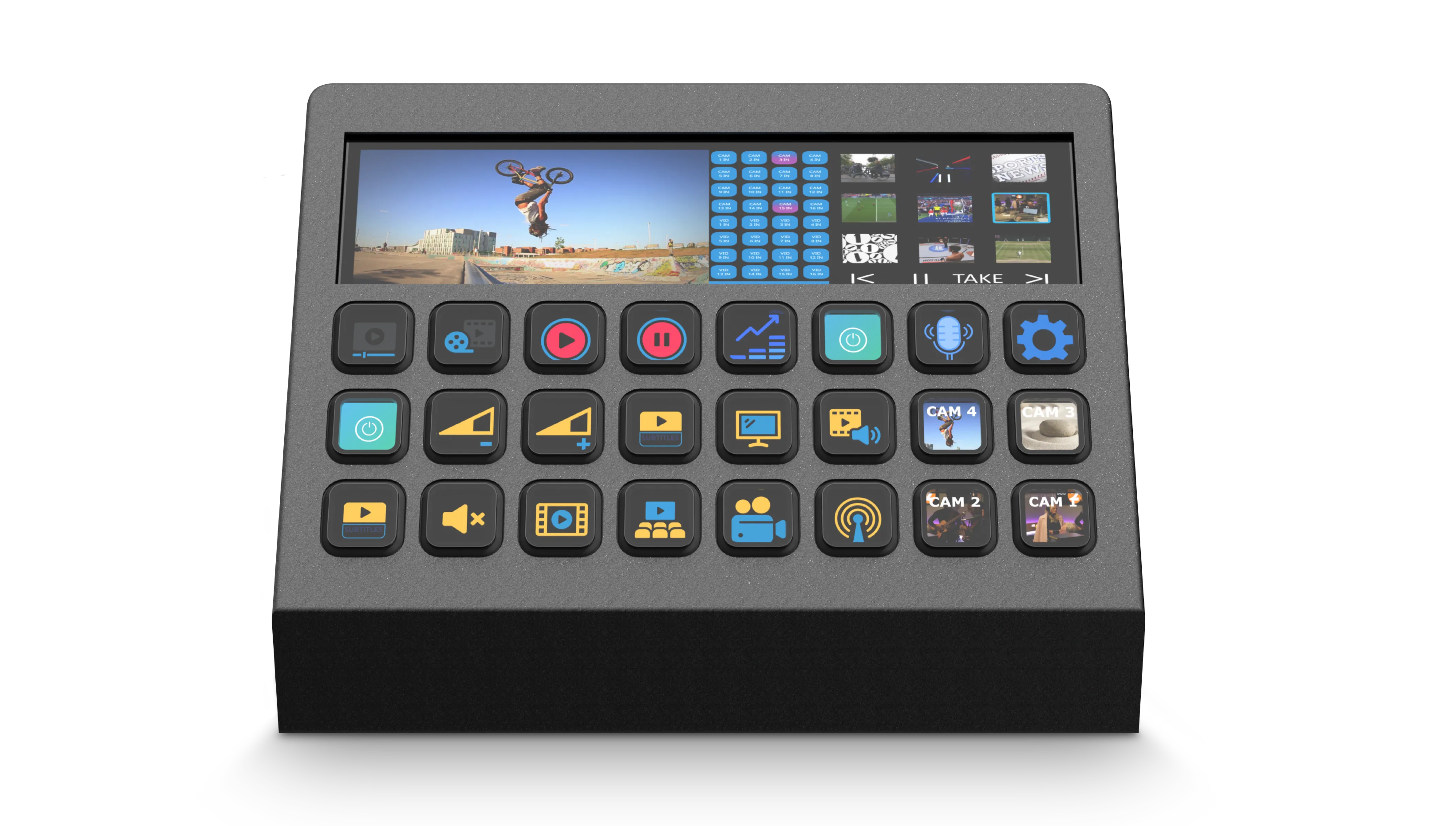

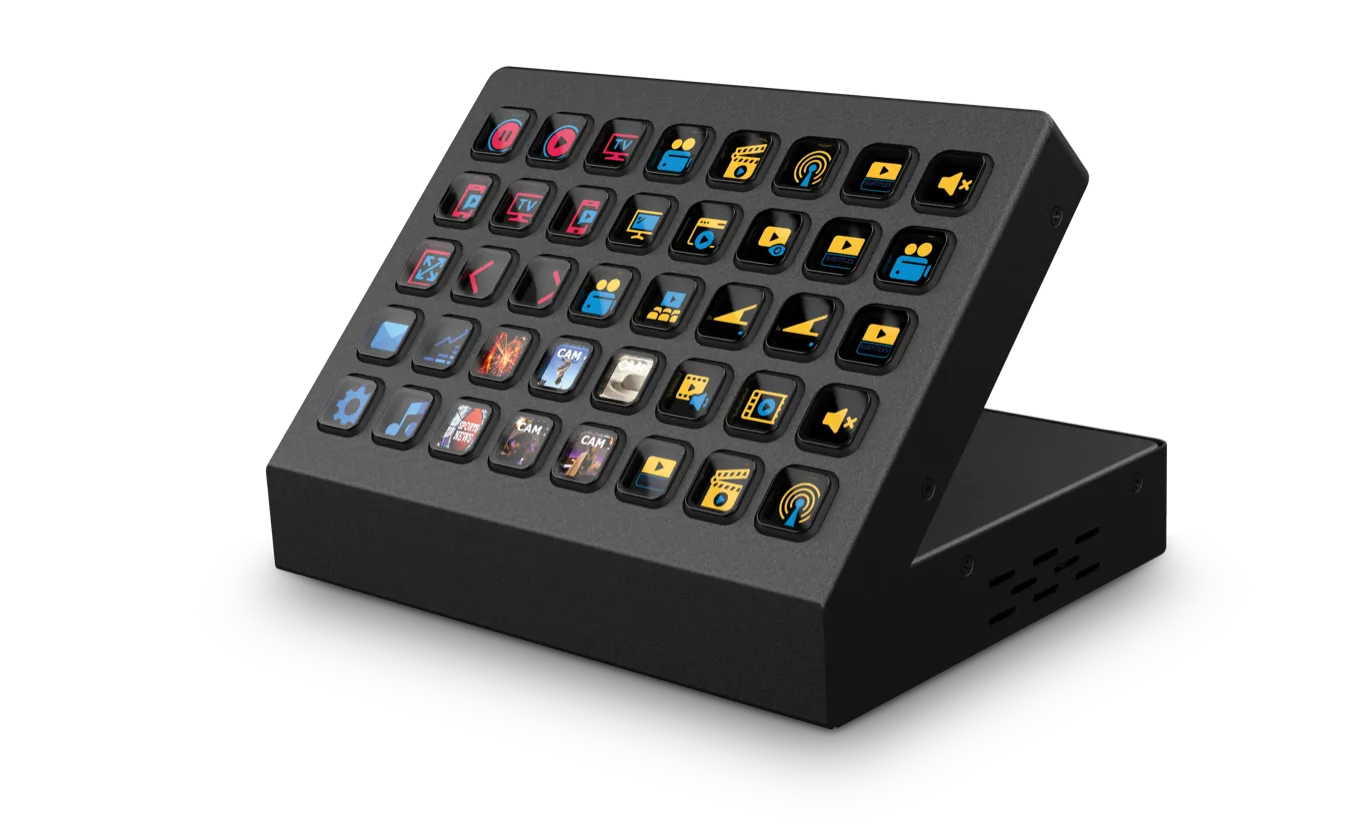

Configurations: Densitron has configured Companion to match ProDeck’s 40-button and 24-button layouts. For touch interfaces, it supports both 40 and 24 buttons, or any other combination.

Customization: Specific layouts can be tailored to customer needs, provided there is a reasonable justification and a substantial order quantity (minimum of 25 to 50 units).
Demo and Resources

Current Demos: Showcases the Companion integration across all three ProDeck variants.

APIs and Drivers: A comprehensive list of Companion’s APIs and drivers can be found here. https://bitfocus.io/connections

By leveraging Companion, ProDeck users can enjoy enhanced functionality and flexibility, ensuring a streamlined and efficient user experience.

Yes, the ProDeck comes with a standard demo showcasing various potential applications. These initial demos are illustrative and cannot be connected to a network for immediate use. Customers need to configure them to communicate with other devices before beginning actual application execution.

A super user of any existing software can configure the Prodeck in a matter of hours rather than days.

Yes, the ProDeck works as a control surface for Densitron's IDS solution, either in a standalone configuration for simple device control, or as part of a larger IDS system. Please contact the team to discuss your requirements

Regarding Q-sys, Companion supports it, which extends this compatibility to ProDeck as well. However, it's important to note that not all Q-sys commands are available through the Companion API, as it offers a limited set of commands.

Densitron rotary Tactile technology can be used on the ProDeck range. Currently we are prioritising existing Tactila customer projects, but future resource will be focused on developing rotary Tactila technology across our ProDeck range in the near future. Please get in touch to explore the individual requirements you may need.

As a standalone computer unit, the ProDeck can be connected to other devices, such as the Streamdeck, via its USB port for combined use. It is important to note the power requirements of the Streamdeck or any third-party hardware connected to the USB input. The ProDeck features a USB B type port with USB 2.0 capabilities.

Yes, customers using Companion on Stream Deck will be able to transfer their user menus used on Companion, to the ProDeck.

Yes, Companion software is open-source and compatible with any x86 CPU. The primary requirement is to have a server application running on the computer, while the web application must be reconfigured to fit the on the 2RU display format.

Yes, Companion software is open-source and compatible with any x86 CPU. The primary requirement is to have a server application running on the computer, while the web application must be reconfigured to fit the on the 2RU 80 button display format.

Yes, we can integrate VMIX onto either our 2U monitor or Prodeck X86 computers. Depending on the video resolution and system configuration we can manage from 6 to 15 NDIs.

Yes, the ProDeck can run vMix and manage high-volume traffic. For workflows involving a large number of video inputs and live video feeds, the ProDeck's powerful processor ensures optimal performance.

Key assignment on a Stream Deck is a customizable process, tailored by each customer to meet their specific needs. Likewise, Companion menus are individually configured by users to align with their requirements. For instance, when a customer is using a 24-button layout, any remaining buttons can be assigned to additional functions.

Thanks to our Companion Integration, users can access our layout directly from the Companion website.

The standard RAM available for the ProDeck is 8GB.

The standard hard drive size is 64 GB, with options to upgrade to larger capacities, such as 128 GB, 256 GB, 512 GB, and 1 TB. Any upgrades must be coordinated with Densitron, as this is an onboard eMMC, which is not easily replaceable by the customer. In most applications, we find that 64 GB is more than sufficient.

Densitron provides standard Linux and Windows images with VNC embedded for easy access via an IP address. For more details, please refer to our How-to guide. The standard Densitron product is available in the Linux version densitron.com/files/library/files/ProDeckGuide.pdf

You can find the positions of the buttons in the how to guide:
densitron.com/files/library/files/ProDeckGuide.pdf

You can find the positions of the buttons in the how to guide:
densitron.com/files/library/files/ProDeckGuide.pdf

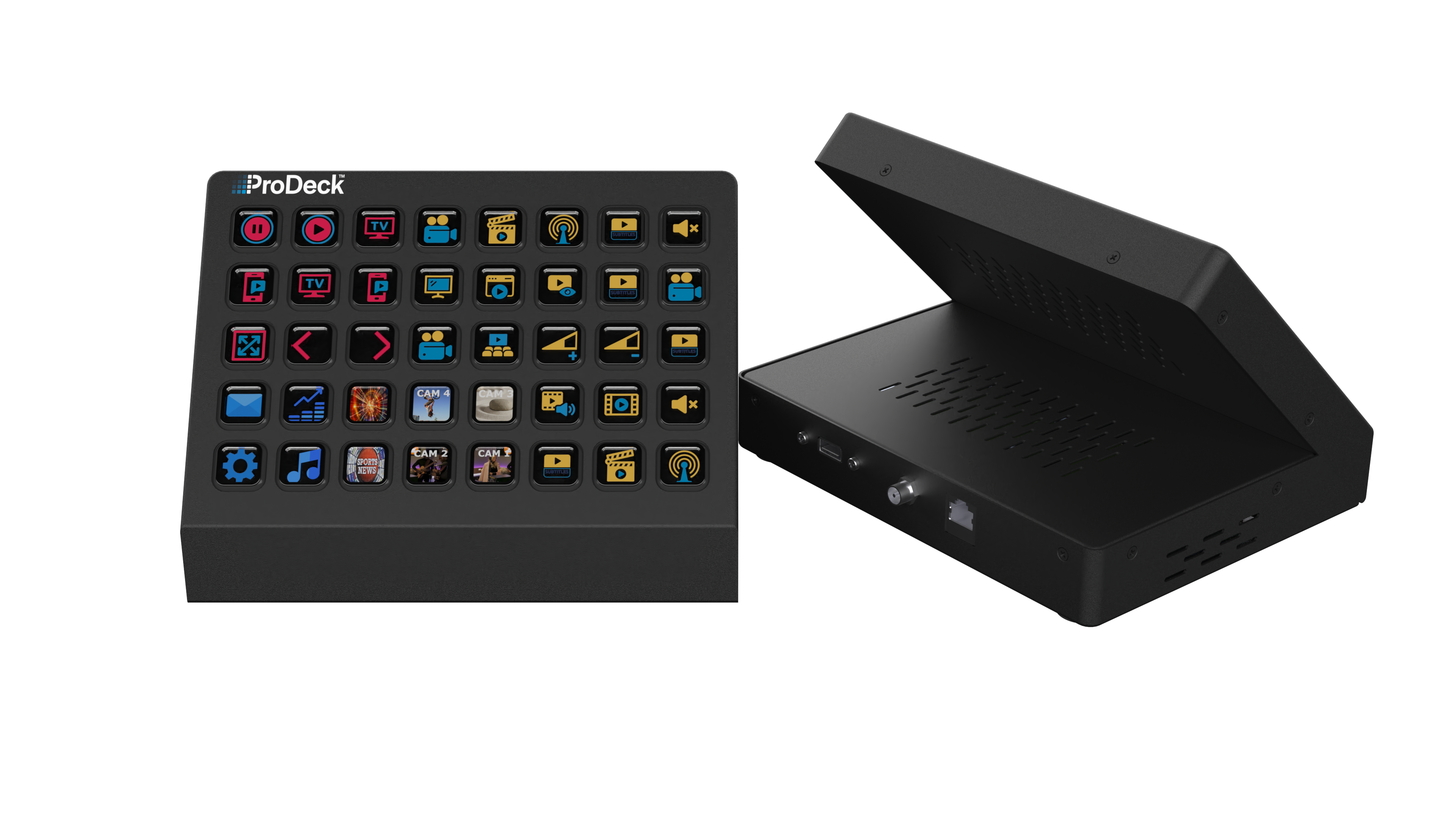

The ProDeck features an RJ45 port for all external communications, offering a Gigabit Ethernet connection. It also includes a USB 2.0 port for connecting compatible devices. If a device is not functioning via the standard USB port, drivers may need to be installed, just as you would on any PC. The unit is powered by a 12V DC input. Additionally, the Ethernet port supports power delivery through PoE+, but a compatible PoE+ source or switch is required.

You can control the display brightness using a feature demonstrated in our demo application. By holding the menu button for more than 8 seconds, you can adjust the brightness to your preference. This functionality can be implemented in your own application in a different way if needed.

Yes, the ProDeck is able to connect with Bitforce.

Densitron standard products have a one year warranty from when the product is received by the customer. Extended warranty is provided on volumes and to be discussed with your business development manager. Densitron is an industrial component and finished product suppler. We provide standard products for 3 to 5 years availability.

It is an Ubuntu 22.04, desktop version. There is a X86 intel atom processor which can support different OS, up to customer to test for required OS. We support Ubuntu 22.04 and windows 11. There is an additional charge for Windows 11.

The major difference is cost. Linux comes as standard, but Windows is will have an added cost associated with it.
