SKU: DM-163GN-MBXR01

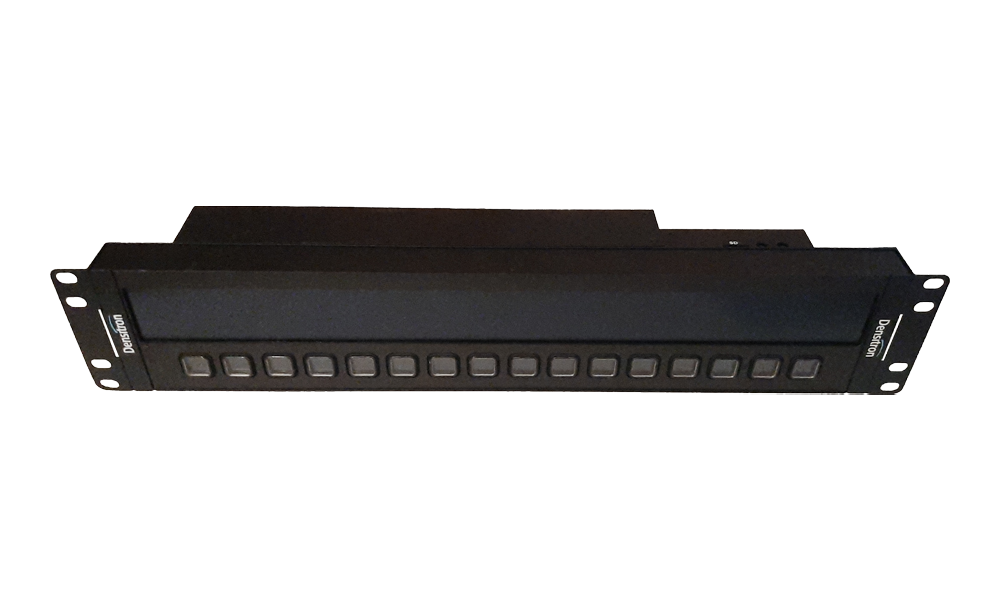

2RU with X86 Platform - Single Row Buttons
.png)
Densitron’s modular design of HMI control surface is suitable for applications in Broadcast, Telecommunications, and other networked control and monitoring systems.
Downloads
Display
- Brightness
- 700 cd/m²
- Colour
- RGB
- Contrast Ratio
- 600:1
- Display Resolution
- 1920 x 285
- Display Size
- 16.30"
- Operating Temp Max
- 40°C
- Operating Temp Min
- 0°C
- Viewing Angle
- 70/70/70/70
Other
- Wide Angle Viewing
- Yes
- Touch Panel
- No
- Mounting Method
- Rack Mount
- Display Tec
- Mechanical Touch
- Evaluation kit available
- Yes
- Range
- 2RU
- Sector
- Broadcast
HMI
- HMI
- Mechanical Touch
- Multitouch
- Yes
- Touch Interface
- USB
Dimensions
- Dimensions Depth
- 74.41 mm
- Dimensions Height
- 70.65 mm
- Dimensions Width
- 483.20mm
Mounting and Connectivity
- Interface
- USB
- Mechanical Mounting
- Closed Frame
Computing
- Compatibility
- X86
