SKU: DD-160128FC-2B

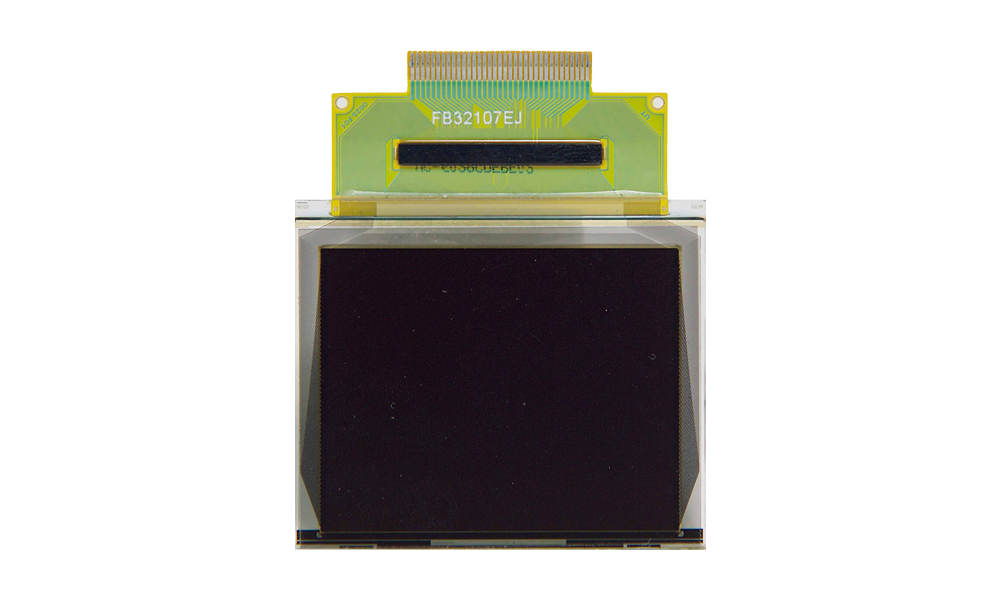

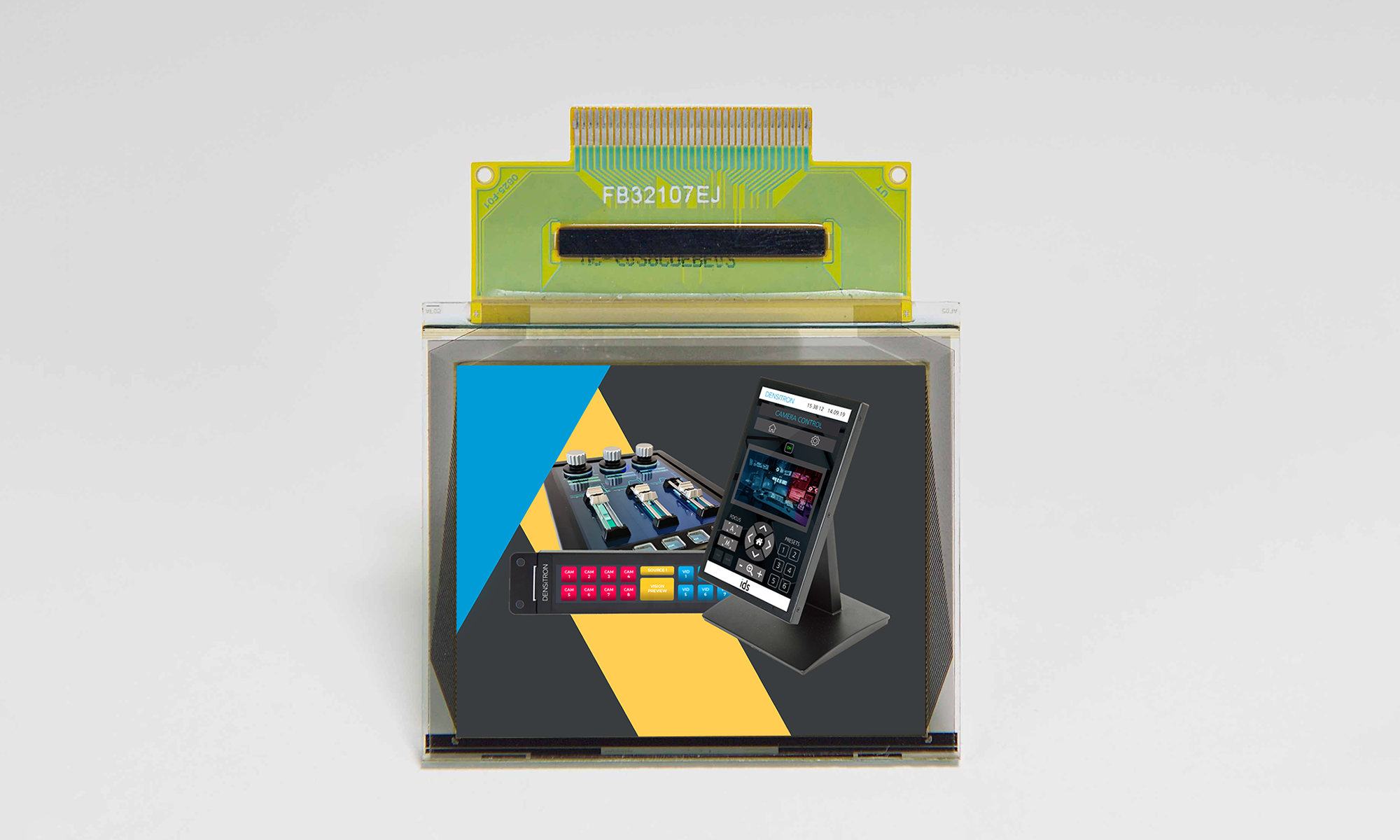

1.69” Colour OLED Display
OLED 160 X 128 DOT FULL COLOUR 262K CONNECTOR TYPE 1.69INC
For mass volume pricing please contact us
Customisation also available on this product
Downloads
Display
- Brightness
- 75 cd/m²
- Colour
- Full 262K colour
- Contrast Ratio
- 2000:1
- Display Resolution
- 160 x 128
- Display Size
- 1.69"
- Operating Temp Max
- 80°C
- Operating Temp Min
- -30°C
- Viewing Angle
- 80/80/80/80
Other
- Shape
- Rectangular
- Wide Angle Viewing
- No
- Touch Panel
- No
- Evaluation kit available
- Yes
- Range
- OLED Displays
- Subcategory
- Industrial PMOLED displays
- Sector
- Broadcast, Medical, Security, Test and Measurement, Transport
Dimensions
- Dimensions Depth
- 1.60 mm
- Dimensions Height
- 39.90 mm
- Dimensions Width
- 34.00mm
Mounting and Connectivity
- Interface
- MPU, SPI Serial
- Mechanical Mounting
- Display
HMI
- Multitouch
- No
