SKU: DMT050HDNMCMI-1A

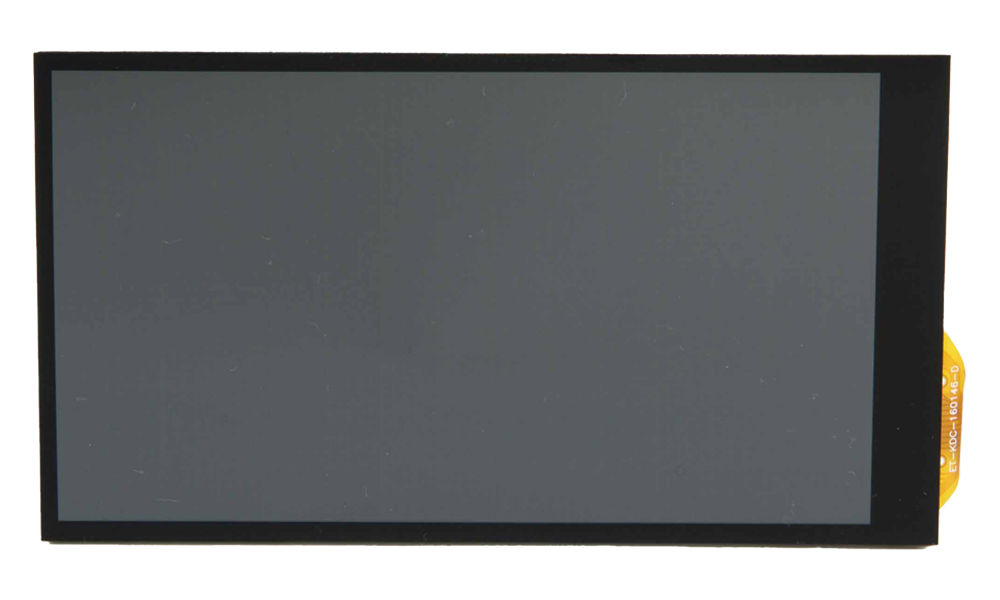

5” MIPI TFT Display
5.0'' IPS 720x1280 MIPI, with PCT touch
For mass volume pricing please contact us
Customisation also available on this product
Downloads
Other
- Shape
- Rectangular
- Wide Angle Viewing
- Yes
- Touch Panel
- Yes
- Display Tec
- IPS
- Evaluation kit available
- Yes
- Range
- TFT Displays
- Sector
- Broadcast, Medical, Security, Test and Measurement
Display
- Brightness
- 420 cd/m²
- Display Resolution
- 720 x 1280
- Display Size
- 5"
- Operating Temp Max
- 70°C
- Operating Temp Min
- -20°C
- Viewing Angle
- 80/80/80/80
HMI
- HMI
- Standard Touch
- Multitouch
- Yes
- Touch Interface
- I2C
Dimensions
- Dimensions Depth
- 4.20 mm
- Dimensions Height
- 135.65 mm
- Dimensions Width
- 78.56mm
Mounting and Connectivity
- Interface
- MIPI
- Mechanical Mounting
- Display
Computing
- Compatibility
- Aurora
