SKU: DD-12832xx-xx

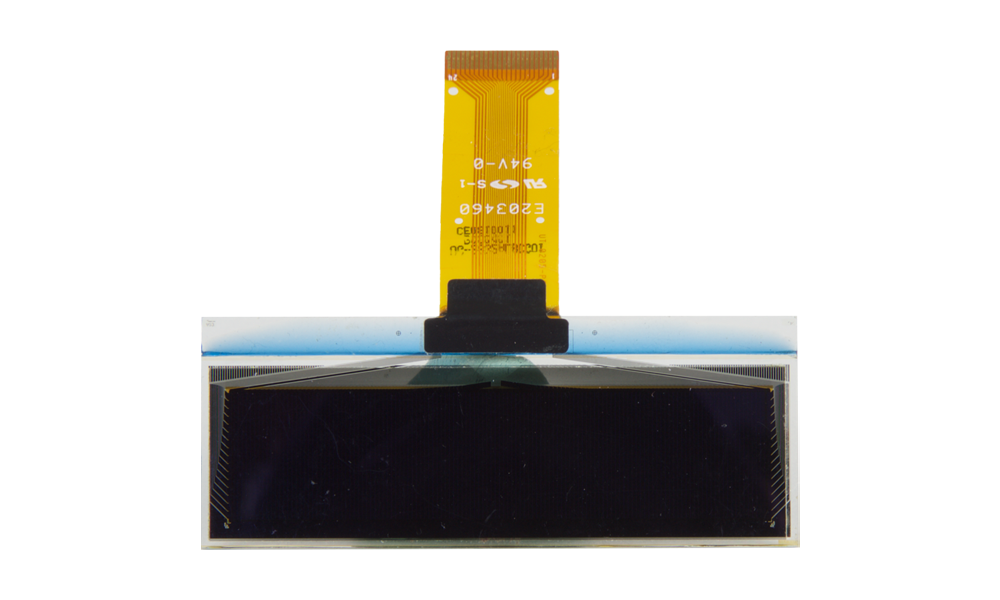

2.23” Monochrome OLED Display
OLED 128 X 32 DOT YELLOW COG DISPLAY 2.23" CONNECTOR TYPE
For mass volume pricing please contact us
Customisation also available on this product
Display
- Brightness
- 120 cd/m²
- Colour
- White/ yellow/ blue
- Contrast Ratio
- 2000:1
- Display Resolution
- 128 x 32
- Display Size
- 2.23"
- Operating Temp Max
- 80°C
- Operating Temp Min
- -30°C
- Viewing Angle
- 80/80/80/80
Other
- Shape
- Rectangular
- Wide Angle Viewing
- No
- Touch Panel
- No
- Evaluation kit available
- Yes
- Range
- OLED Displays
- Subcategory
- Industrial PMOLED displays
- Sector
- Broadcast, Medical, Security, Test and Measurement, Transport
Dimensions
- Dimensions Depth
- 2.00 mm
- Dimensions Height
- 62.00 mm
- Dimensions Width
- 24.00mm
Mounting and Connectivity
- Interface
- 12c, MPU, SPI Serial
- Mechanical Mounting
- Display
HMI
- Multitouch
- No
